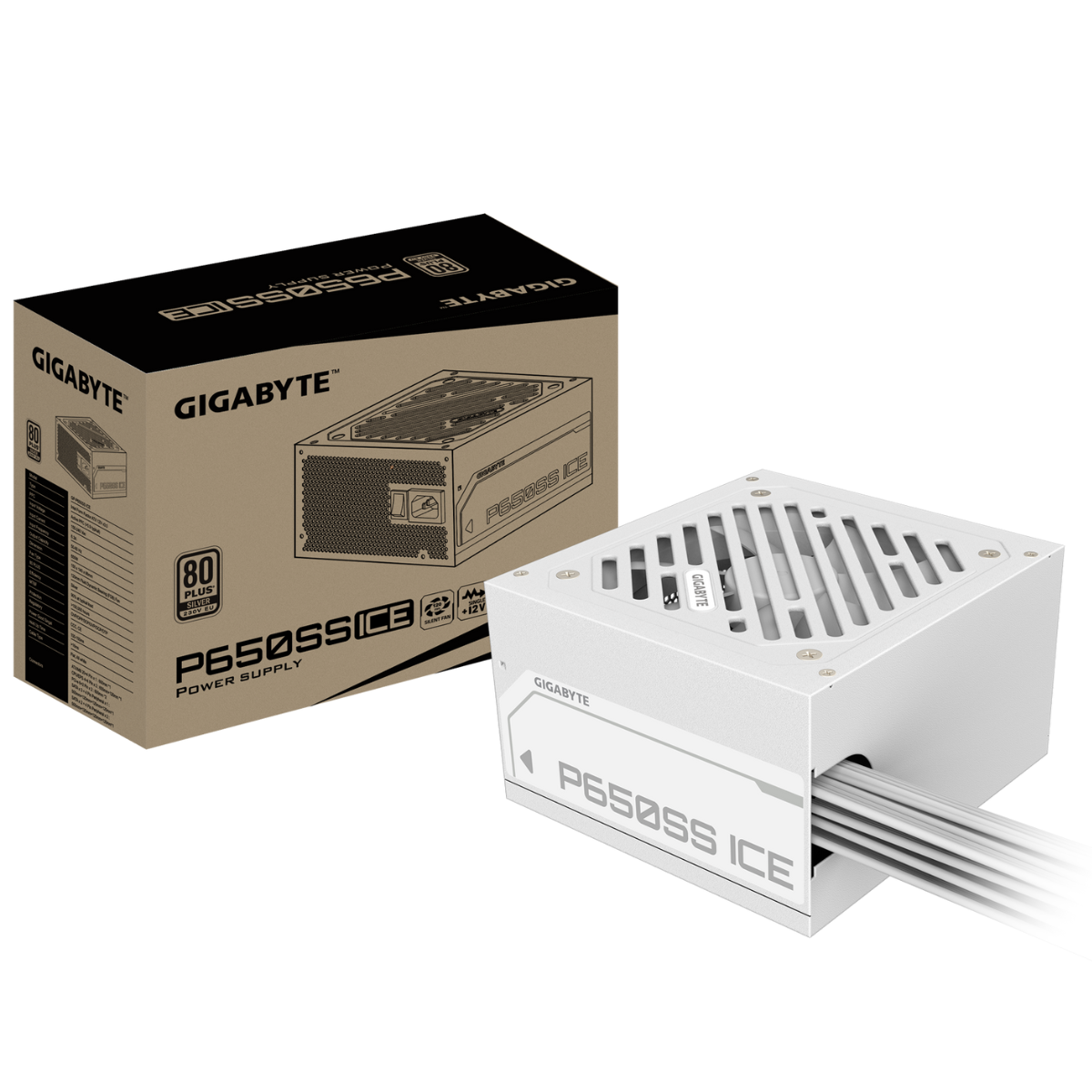

Gigabyte Fuente 650 Silver GP-P650SS ICE GCL1

Model
GP-P650SS ICE
Type
Intel Form Factor ATX 12V v3.0 (compatible with ATX 3.1)
PFC
Active PFC (>0.9 typical)
Input Voltage
155-240 Vac
Input Current
6.3A
Input Frequency
60-50 Hz
Output Capacity
650W
Dimension
150 x 140 x 86 mm
Fan Type
120mm Fluid Dynamic Bearing (FDB) fan
80 PLUS
Silver
Efficiency
90% at typical load (230V EU)
MTBF
>100,000 hours
Protection
OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal
100-150ms
Hold Up Time
>16ms
Cable Type
Flat, All white
Connectors
ATX/MB 20+4 Pin x 1 : 600mm*1
CPU/EPS 4+4 Pin x 2 : 650mm+120mm*1
PCI-e 6+2 Pin x 2 : 600mm*2
SATA x 3 + 4 Pin Peripheral x 1 : 500mm+120mm+120mm+120mm*1
SATA x 2 + 4 Pin Peripheral x 2 : 500mm+120mm+120mm+120mm*1
