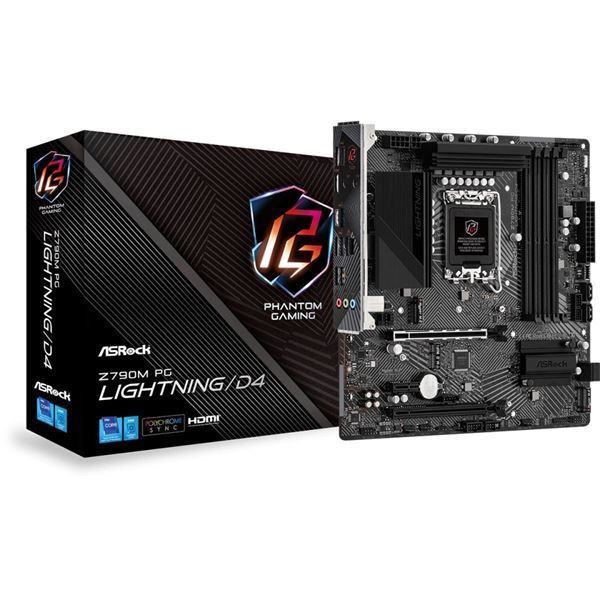

ASRock Z790M PG Lightning/D4 LGA1700 90-MXBJW0-A0UAYZ

Placa madre Z790M PG Lightning/D4 LGA1700 con Micro-ATX, soporte 4 × DDR4 DIMM, PCIe 4.0 x16.

Marca: ASRock

P/N: 90-MXBJW0-A0UAYZ

Precio anterior: U$S 352,92

Precio: U$S 323,73

U$S 291,35

IVA incluido

Cantidad: decrease increase

Tiempo de despacho estimado en el día a 24hs. [ver detalles]

La ASRock Z790M PG Lightning/D4 es una placa micro‑ATX enfocada en rendimiento y estabilidad para CPUs Intel de 12ª a 14ª generación. Su diseño de alimentación 10+1+1 Dr.MOS, soporte DDR4 hasta 5333 MT/s y doble ranura M.2 Gen4 ofrecen un equilibrio ideal para PC compactas y gaming avanzado.

Socket: LGA1700
Fase de alimentación: 10+1+1 Dr.MOS
Memoria: 4× DDR4 DIMM hasta 128 GB, OC hasta 5333 MT/s
Slots PCIe: 1× PCIe 4.0 x16, 1× PCIe 3.0 x16, 1× PCIe 3.0 x1
Almacenamiento: 1× M.2 Gen4x4, 1× M.2 Gen4x4/SATA3 + 4 SATA3
Extras: header M.2 Key‑E Wi‑Fi, RGB WS2812B, PSC diagnóstico POST
Conectividad: HDMI, audio Realtek ALC897, controlador Nahimic
Uso recomendado: Gaming en tamaño compacto, PCs modernas con buen OC y estabilidad.

Detalles técnicos

Socket	Socket 1700
Marca	Asrock
Part Number	90-MXBJW0-A0UAYZ
CPU	- Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)- Supports Intel® Hybrid Technology- Supports Intel® Turbo Boost Max 3.0 Technology- Supports Intel® Thermal Velocity Boost (TVB)- Supports Intel® Adaptive Boost Technology (ABT)
Chipset	- Intel® Z790
Gráficos	- Intel® Xe Graphics Architecture (Gen 12)- 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Audio	- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)- Nahimic Audio
Lan	Gigabit LAN 10/100/1000 Mb/s- Intel® I219V
Conectores	- 1 x SPI TPM Header- 1 x Chassis Intrusion and Speaker Header- 1 x RGB LED Header- 3 x Addressable LED Headers- 1 x CPU Fan Connector (4-pin)- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)- 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**- 1 x 24 pin ATX Power Connector- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)- 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)- 1 x Front Panel Audio Connector- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)- 1 x Front Panel Type C USB 3.2 Gen1 HeaderSupports in total up to 12V/3A, 36W LED StripSupport in total up to 5V/3A, 15W LED StripCPU_FAN1 supports the fan power up to 1A (12W).*CPU_FAN2/WP supports the fan power up to 2A (24W).***CHA_FAN1~4/WP support the fan power up to 2A (24W).CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use.
Zócalos compatibles	S1700
RAID	- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices- Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices*Requires additional M.2 NVMe expansion cards to support RAID 10
USB	- 1 x USB 3.2 Gen2 Type-A (Rear)- 1 x USB 3.2 Gen2 Type-C (Rear)- 1 x USB 3.2 Gen1 Type-C (Front)- 6 x USB 3.2 Gen1 Type-A (4 Rear, 2 Front)- 6 x USB 2.0 (2 Rear, 4 Front)* All USB ports support ESD Protection
Condición del ítem	Nuevo
Factor de forma	ATX
Modelo	Z790m Pg Lightning
Plataforma	Intel
