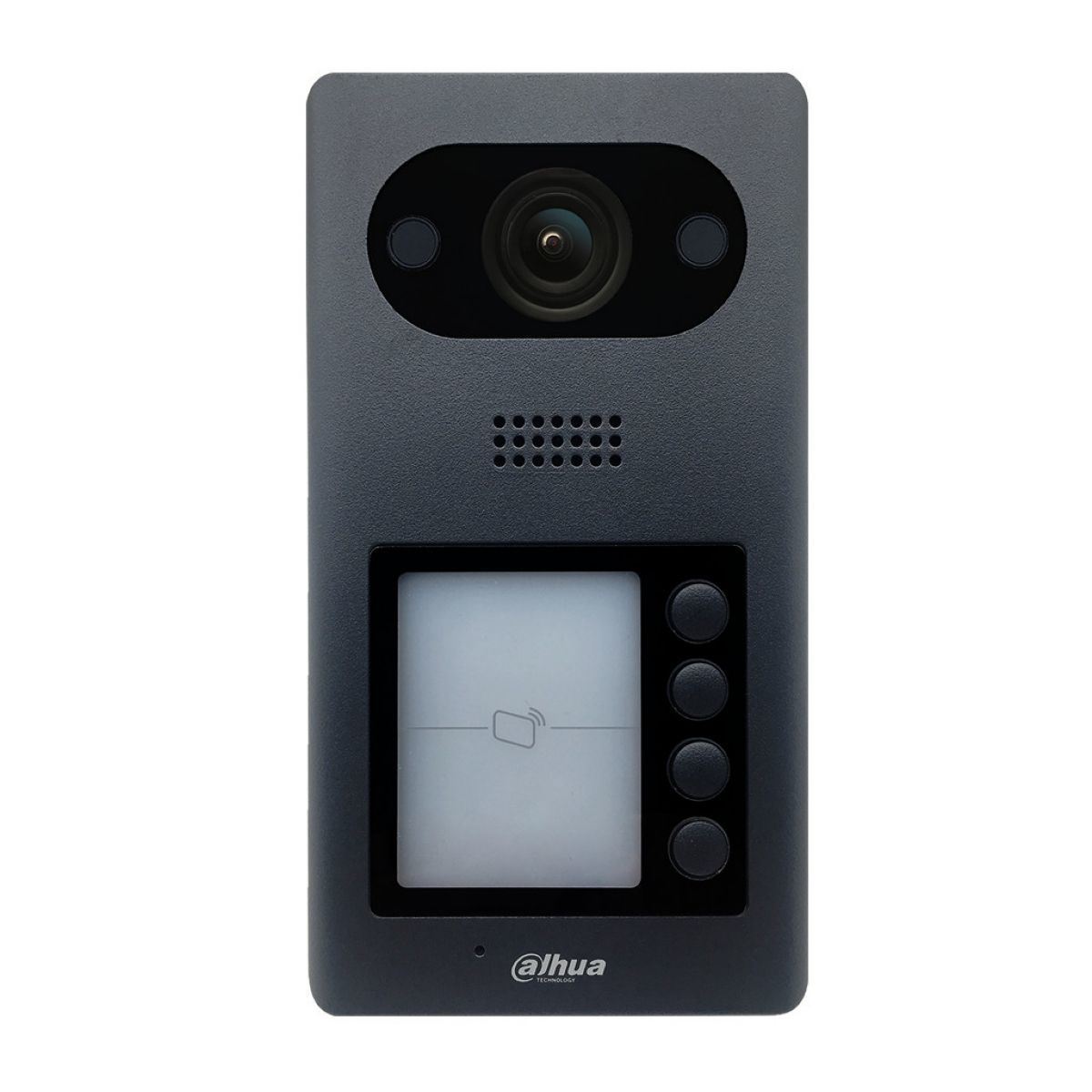

Video Portero Dahua 4 Botones Ip Vto3211d-p4

 Technical Speci?cation

 Model

 VTO3211D-P/P2/P4-S1

 System

 Main Processor

 Embedded Micro Processor

 Operation System

 Embedded LINUX OS

 Video

 Video Compression

 H.264

 Image Sensor

 1/2.8” 2MP CMOS

 Focal Length

 1.9mm

 Angle of View

 H:134°, V: 94.8°, D:151°

 Day/Night

 ICR

 Audio

 Audio Compression

 G.711

 Audio Input

 Omnidirectional Mic

 Audio Output

 Built-in Speaker

 Bidirectional Talk

 Support Dual-way Bidirectional talk

 Operation Mode

 Keypad

 1/2/4 Mechanical Buttons

 Reader

 Mifare Card

 Interface

 Door Control

 1

 Alarm Out

 1

 Alarm In

 2(1ch unlock button, 1ch feedback)

 RS485

 1

 Network

 Ethernet

 10M/100Mbps Self-adaptive

 Network Protocol

 TCP/IP

 Ethernet

 10M/100Mbps Self-adaptive

 Network Protocol

 TCP/IP

 General

 Ingress Protection

 IK08, IP65 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)

 Tamper Switch

 1

 Installation

 Surface

 Material

 Zinc Alloy

 Power

 DC 12V, PoE(802.3af)

 Power Consumption

 Work =6W

 Working Temperature

 ?30°C to +60°C

 Relative Humidity

 10%RH–90%RH

 Dimensions

 182.0mm×30.0mm×101.0mm

 Weight

 0.8kg
